Automotive Half-shaft
video
Automotive Half-shaft

Automotive Half-shaft

The company's core values are based on putting people first, scientific management, working toward common goals, and staying committed to long-term development. Its factory policy focuses on product quality, expanding its product range, honest service, and proper management. The company has also received "Quality Supplier" and other honors from Sany Heavy Industry.
Send Inquiry
Description

Who Makes This Part



The company's core values are based on putting people first, scientific management, working toward common goals, and staying committed to long-term development. Its factory policy focuses on product quality, expanding its product range, honest service, and proper management. The company has also received "Quality Supplier" and other honors from Sany Heavy Industry.

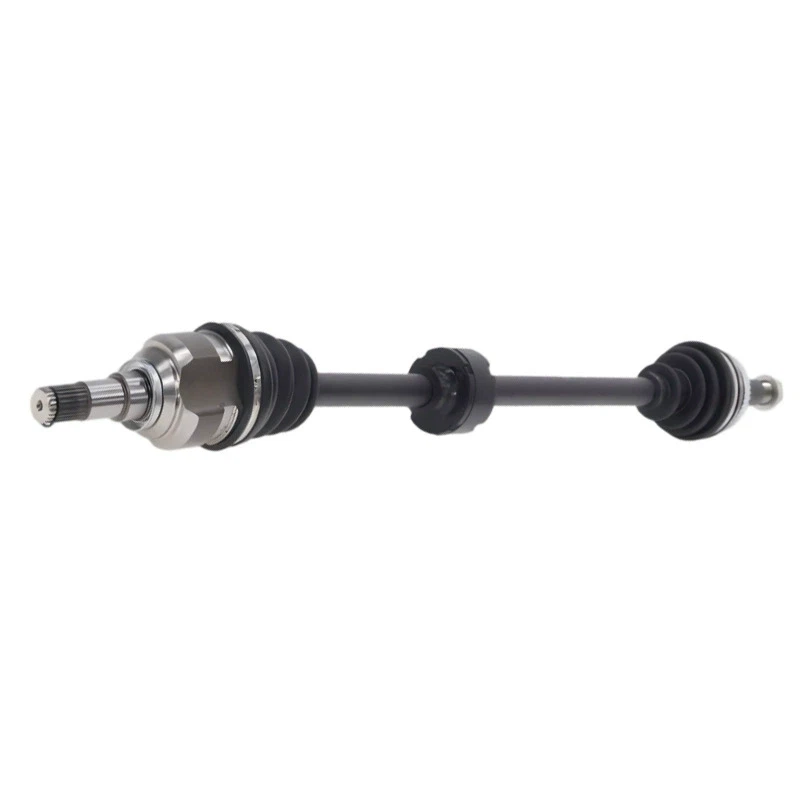

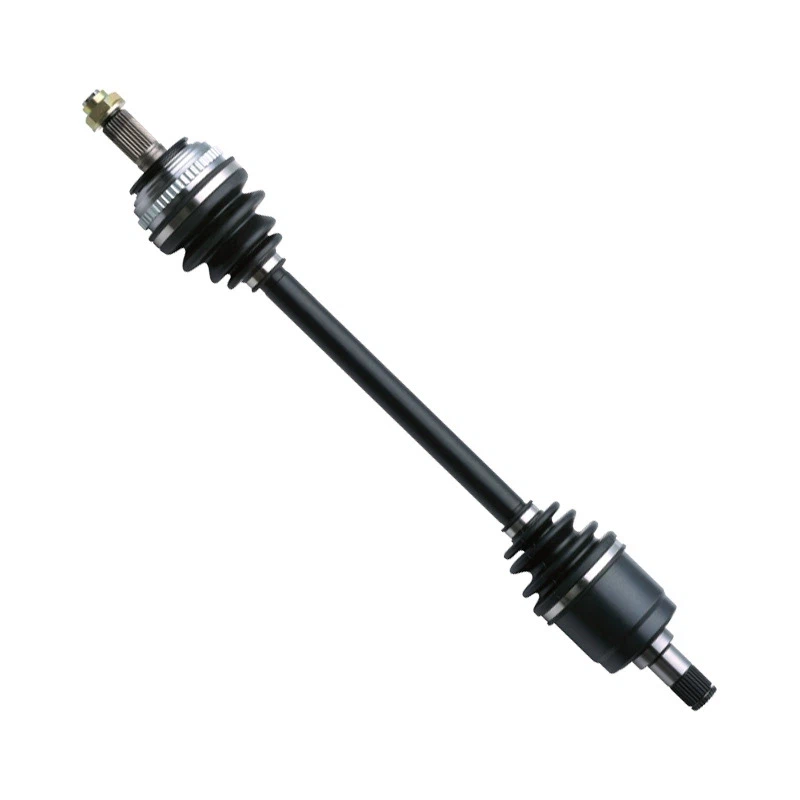

The Automotive Half-shaft is a load-bearing component in a vehicle drivetrain. 40Cr or 42CrMo alloy structural steel is used as the main material. The manufacturing process includes forging, precision machining, and overall heat treatment. The finished shaft provides high bending and torsional strength along with good fatigue resistance. The Automotive Half-shaft transfers engine power from the drivetrain to the wheels.

product-800-800



Torque, Splines, and Finish



Starting, acceleration, heavy loads, and uneven roads can place high torque loads on a half-shaft. Heat treatment hardness is HRC28 to 38, with a rated torque range of 1500 to 8000 N·m. Rectangular and involute splines are available. Spline accuracy reaches IT6 to IT7, surface roughness is Ra≤1.6 μm, and straightness is ≤0.15 mm/1000 mm.



Surface treatment options include blackening, phosphating, and anti-rust oil. The shaft is suitable for passenger cars and light commercial vehicles, with a working temperature range of -40°C to 120°C. Accurate splines help maintain a proper fit with the differential and wheel hub, while dynamic balancing helps reduce vibration during operation. Custom production is available according to vehicle model and specifications.

product-800-800



Support Through the Order



Technical consultation is available before production to confirm product specifications, performance requirements, and installation conditions. During production, quality inspection and order progress are followed throughout the process. Third-party customer audits are also supported.



After delivery, technical support is available when needed. Buyers ordering the Automotive Half-shaft usually pay close attention to spline accuracy, since poor spline matching with the differential can lead to vibration and accelerated wear.



Key Parameters



Parameter

Value

Material

40Cr / 42CrMo alloy structural steel

Heat treatment hardness

HRC28–38

Rated torque

1500–8000 N·m

Spline accuracy

IT6–IT7

Surface roughness

Ra≤1.6 μm

Straightness

≤0.15 mm/1000 mm
