Divided Turbine Housing

Divided Turbine Housing

The company moved to Qiangchang Town Industrial Park in Jingshan, Hubei, in 2023. The new plant covers 60 mu, with more than 27,000 square meters of workshop space. A fully automatic heat treatment line was installed at the same time. Before the move, rented and owned workshop space had already reached 12,000 square meters by 2022, with a complete production system in operation. The relocation reduced costs, improved efficiency, and strengthened management and product development.
Send Inquiry
Description

A Factory Built for Heat Work



The company moved to Qiangchang Town Industrial Park in Jingshan, Hubei, in 2023. The new plant covers 60 mu, with more than 27,000 square meters of workshop space. A fully automatic heat treatment line was installed at the same time. Before the move, rented and owned workshop space had already reached 12,000 square meters by 2022, with a complete production system in operation. The relocation reduced costs, improved efficiency, and strengthened management and product development.

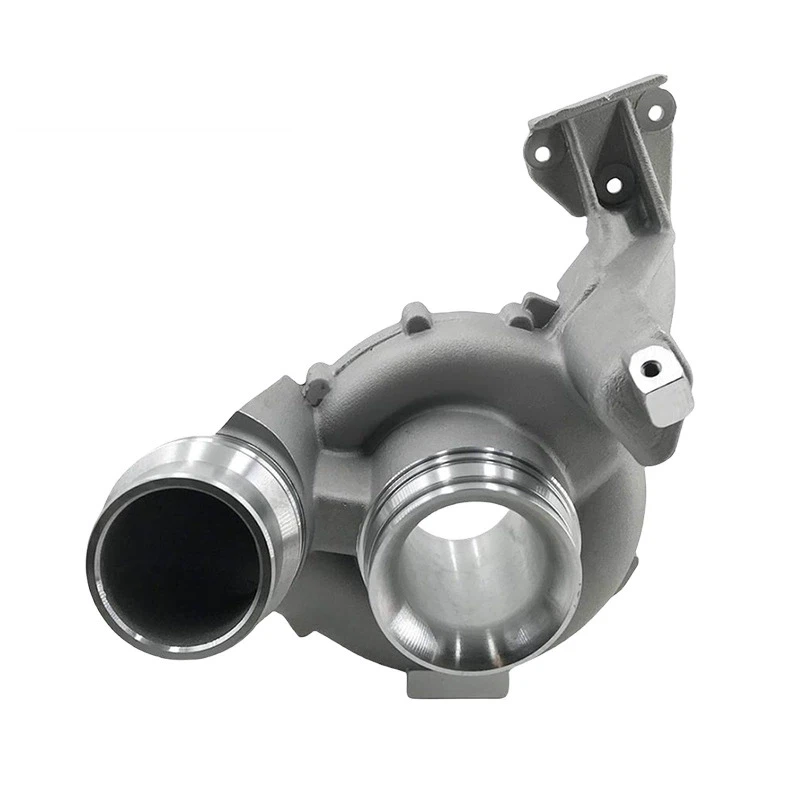

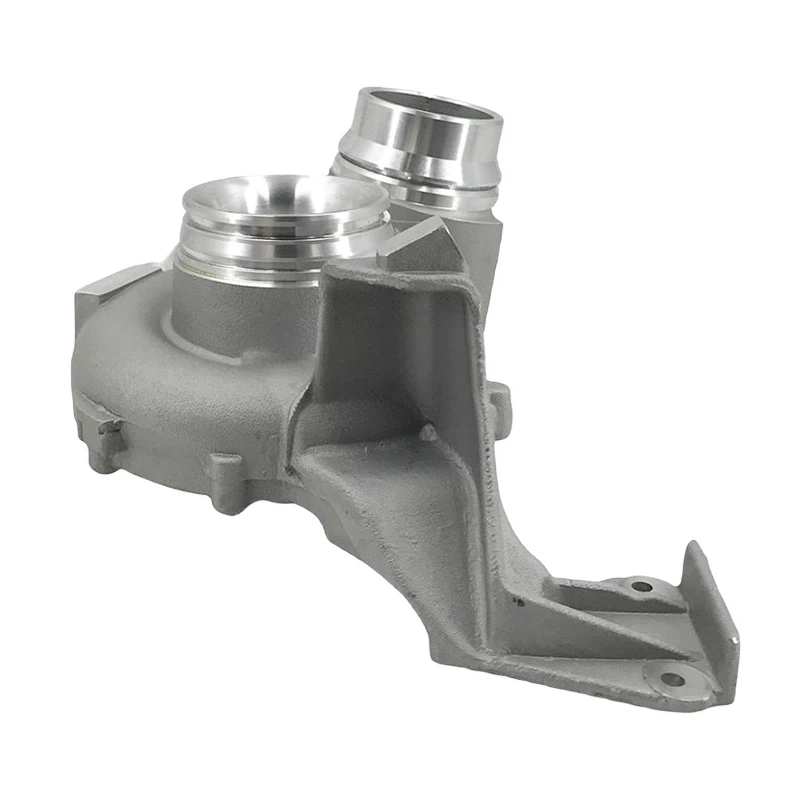

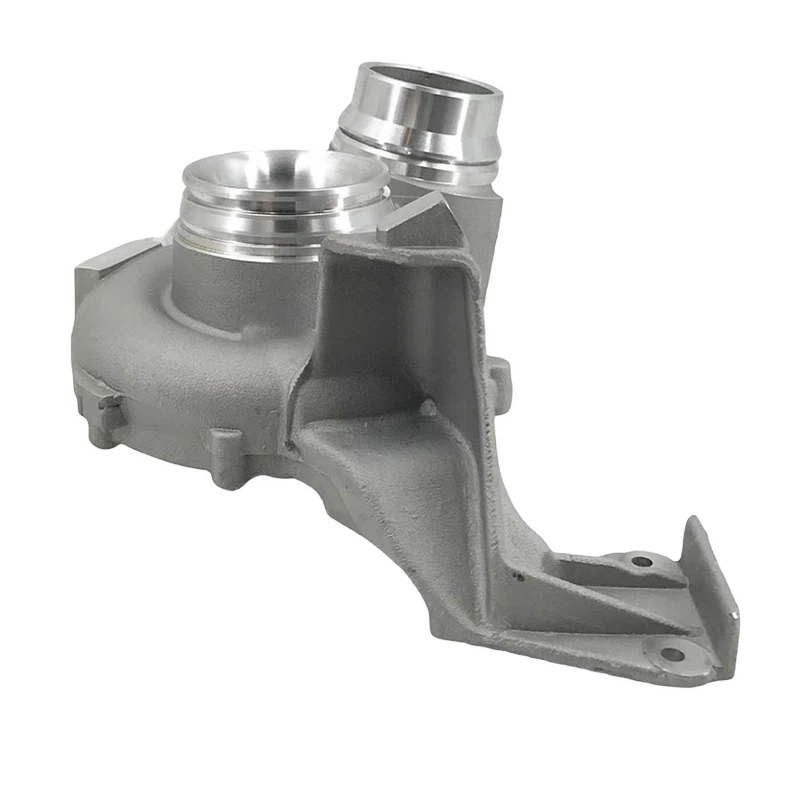

The Divided Turbine Housing is a core component of a turbocharger system. High-nickel heat-resistant alloy cast iron or K-series heat-resistant cast iron is used as the main material. Precision casting forms the housing, followed by high-temperature aging treatment and structural strengthening. The finished part is built to withstand heat, pressure, and thermal fatigue. It is used in turbocharger systems for demanding engine applications.

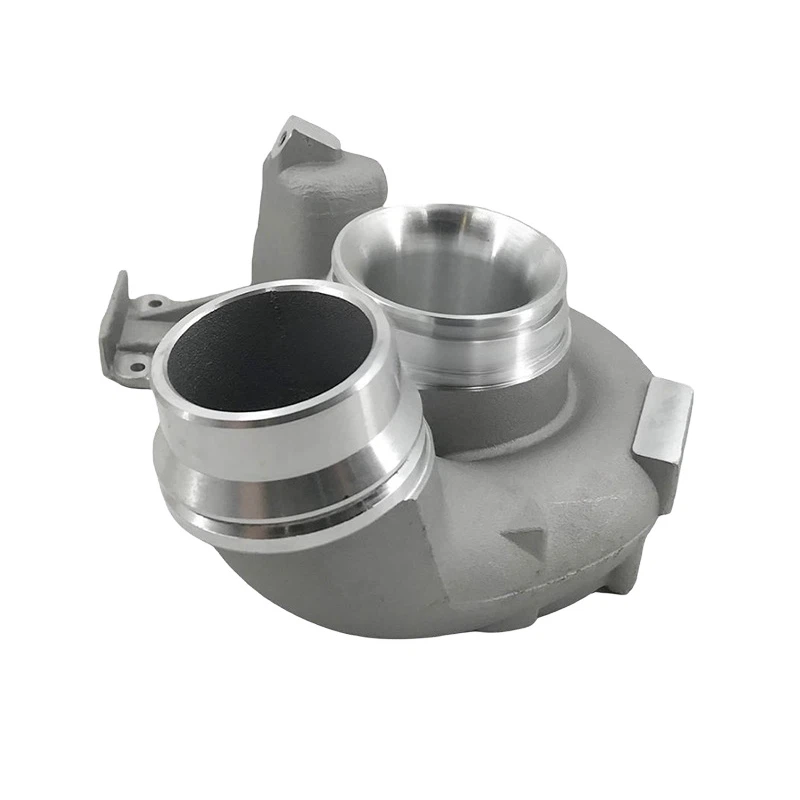

product-800-800



Flow, Fit, and Temperature



A turbocharger housing must guide exhaust gas efficiently while maintaining structural integrity under high temperatures. The internal flow channel is smooth to improve exhaust gas flow efficiency and turbocharger response. Flange and mounting surfaces are machined to tight tolerances for reliable sealing and assembly fit.



The working temperature ranges from -40°C to 950°C, with a pressure range of 0.1 to 2.5 MPa. Casting is carried out using coated sand precision casting or metal mold casting. Surface roughness reaches Ra≤3.2 μm, mounting surface flatness is maintained at ≤0.05 mm, flange hole position tolerance reaches ≤0.08 mm, and flow channel forming accuracy is ±0.1 mm.



The housing is suitable for 1.0T to 3.0T passenger car engines and light commercial vehicles. Shot blasting and a high-temperature anti-oxidation coating are used for surface treatment.

product-800-800



Support Through the Order

Before sales, the company provides technical consultation based on customer requirements, with attention to product specifications, performance, and fit. During production, quality control standards are followed, while production progress and inspection results are communicated to customers. Third-party factory audits are supported.



After delivery, the company provides follow-up service and technical support for product use. Buyers ordering the Divided Turbine Housing for high-temperature applications usually ask about thermal fatigue life first, because cracking under repeated high-temperature and pressure cycles can affect the entire turbocharger assembly.

product-800-800



Key Parameters



Parameter

Value

Material

High-nickel heat-resistant alloy cast iron / K-series heat-resistant cast iron

Working temperature

-40°C to 950°C

Pressure range

0.1–2.5 MPa

Casting process

Coated sand precision casting / metal mold casting

Mounting surface flatness

≤0.05 mm

Flow channel forming accuracy

±0.1 mm
