Hydraulic Pins and Bushings

Hydraulic Pins and Bushings

One senior engineer leads the technical work. Six core managers hold college degrees or higher. Seven R&D technicians handle product design. Two salespeople are responsible for the market. More than 50 skilled operators run the machines. The team covers product development, production technology, quality control, and marketing.
Send Inquiry
Description

The Team Behind the Part



One senior engineer leads the technical work. Six core managers hold college degrees or higher. Seven R&D technicians handle product design. Two salespeople are responsible for the market. More than 50 skilled operators run the machines. The team covers product development, production technology, quality control, and marketing.

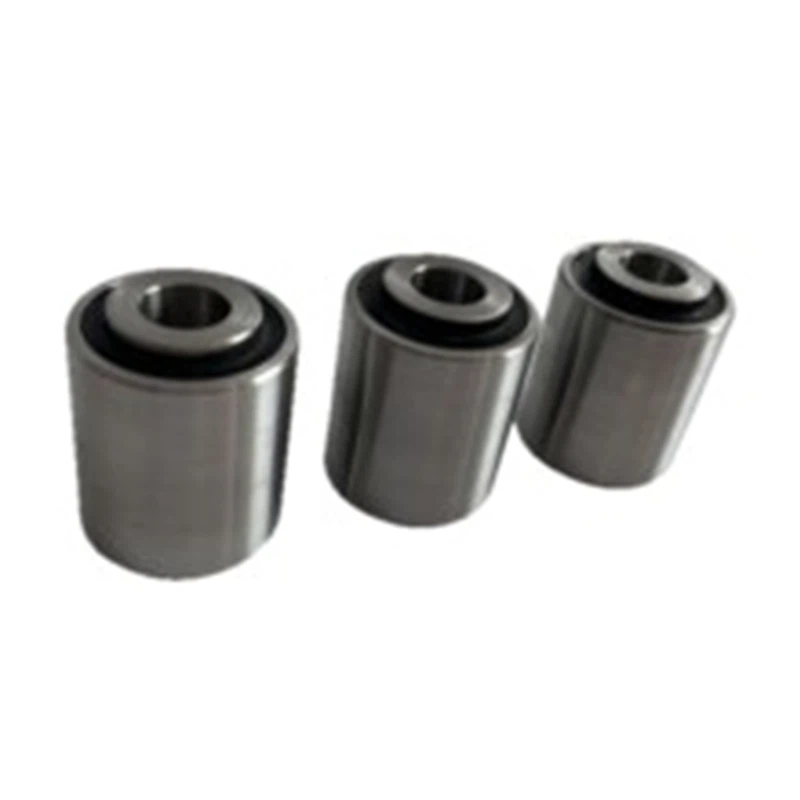

The Hydraulic Pins and Bushings are used in industrial robots, automated hydraulic stations, servo cylinders, and precision hydraulic actuators. Materials include tin bronze, high-strength brass, 40Cr alloy steel, and powder metallurgy wear-resistant materials. High-wear alloys and high-strength copper-based materials are precision machined. These Hydraulic Pins and Bushings have a compact structure and good pressure resistance.

product-800-800



Friction, Fit, and Pressure

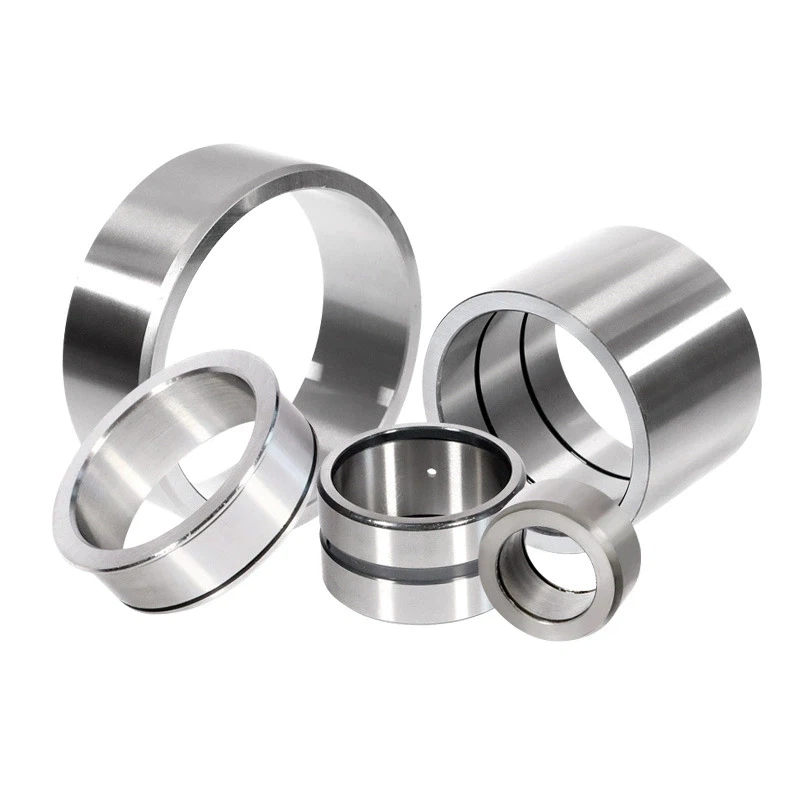

Moving joints are subject to wear during operation. These parts require good wear resistance, low friction, and impact resistance. The design helps reduce friction between moving parts while maintaining the required sealing and guiding accuracy. Inner diameter tolerance reaches IT6 to IT7, and surface roughness is Ra≤0.8 μm. Rated working pressure is up to 35 MPa. The working temperature range is -30°C to 120°C. Wall thickness ranges from 2 to 10 mm, and fit clearance is 0.01 to 0.05 mm.



Hydraulic oil and lubricating oil can be used as the working media. Surface treatment options include phosphating, anti-rust oil, and hard chrome plating. Dimensional accuracy and fit clearance are controlled during machining. The parts can handle high pressure and offset loads during continuous operation. Applications include robot joint cylinders, automated hydraulic modules, servo hydraulic mechanisms, and hydraulic parts for construction machinery.

product-800-800



Testing and Warranty



The factory has six sets of testing equipment, including a metallographic microscope, a spectrometer, and an ultrasonic flaw detector. These instruments are used to check material composition and internal defects. 100% inspection before packing is available for orders that require inspection of every piece. Third-party inspection is also supported.



The company provides a warranty and accepts custom drawings. Buyers ordering Hydraulic Pins and Bushings usually ask about fit clearance first, because excessive clearance can cause movement and play, while insufficient clearance can lead to seizure when the temperature rises.



Key Parameters



Parameter

Value

Material

Tin bronze, high-strength brass, 40Cr alloy steel, powder metallurgy wear-resistant material

Inner diameter tolerance

IT6–IT7

Surface roughness

Ra≤0.8 μm

Rated working pressure

≤35 MPa

Working temperature

-30°C to 120°C

Fit clearance

0.01–0.05 mm
