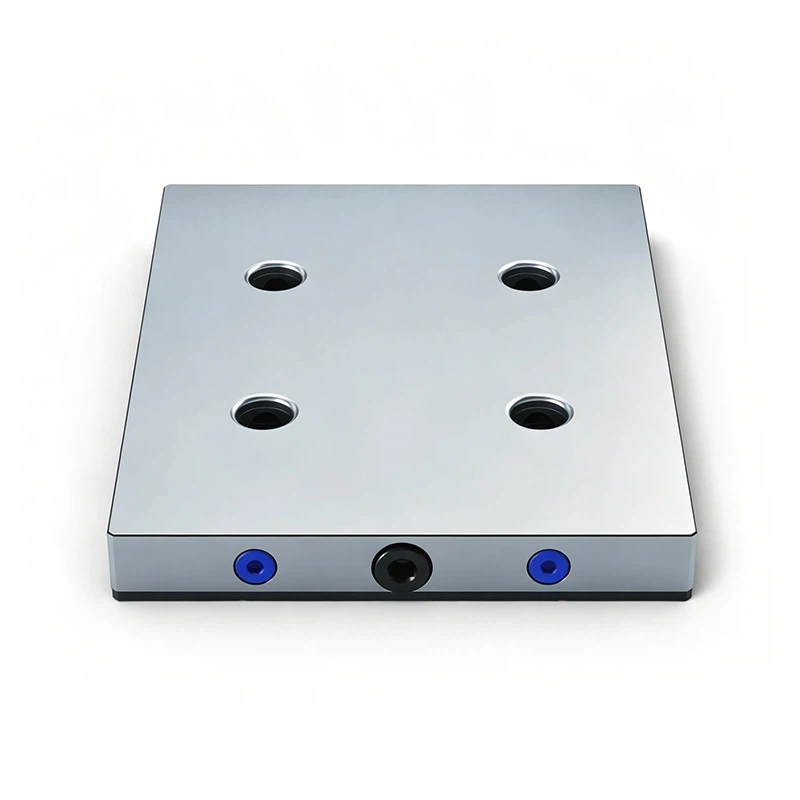

Machine shops need a base plate to stay flat during use. The Positioning Base Plate from this factory is made from 45 steel, 6061 aluminum alloy, or Q235B cold-rolled steel plate. Both faces are machined, followed by a flatness check. Flatness is controlled to ≤0.02 mm per 100 mm. The plate is used under robot workstations, automated production lines, precision fixtures, and testing equipment. It carries fixtures, clamps, actuators, and sensors. Hole position tolerance is ≤0.03 mm, with the same tolerance for parallelism and perpendicularity.
Send Inquiry
Description

A Plate That Holds Its Shape



Machine shops need a base plate to stay flat during use. The Positioning Base Plate from this factory is made from 45 steel, 6061 aluminum alloy, or Q235B cold-rolled steel plate. Both faces are machined, followed by a flatness check. Flatness is controlled to ≤0.02 mm per 100 mm. The plate is used under robot workstations, automated production lines, precision fixtures, and testing equipment. It carries fixtures, clamps, actuators, and sensors. Hole position tolerance is ≤0.03 mm, with the same tolerance for parallelism and perpendicularity.

product-800-800



Where the Plate Goes to Work



The Positioning Base Plate is used under industrial robot bases, servo module mounting plates, automated workstation bases, and fixture base plates. Plate thickness ranges from 8 mm to 30 mm, with custom thickness available. Surface roughness is Ra≤1.6–3.2 μm. Surface treatment options include anodizing, electrostatic powder coating, blackening, and zinc coating. Working temperature ranges from -20°C to 60°C. The plate is made to resist shock and deformation during normal use. Buyers can provide drawings with custom dimensions and hole layouts, and the factory machines the plate according to the drawing.



Checking, Support, and Warranty



Before sales, the company provides technical consultation based on customer requirements. Product specifications, performance, and fit are checked according to the order. During production, quality control follows the company's inspection standards. Production progress and inspection results are reported to customers. Third-party audits are welcome. After delivery, technical support and follow-up are available.



A warranty is provided for the goods. Goods damaged on arrival can be returned free of charge. Buyers ordering the Positioning Base Plate usually ask about flatness first, since an uneven plate can affect the fixtures mounted on it and may lead to rework on the production line.



Key Parameters



Parameter

Value

Material

45 steel, 6061 aluminum alloy, Q235B cold-rolled steel plate

Flatness

≤0.02 mm/100 mm

Hole position tolerance

≤0.03 mm

Surface roughness

Ra≤1.6–3.2 μm

Plate thickness

8–30 mm (customizable)

Working temperature

-20°C to 60°C
