Industrial Drive Shaft

Industrial Drive Shaft

The company's core values are: "people first, scientific management, walking together; the road is long but we will arrive; one heart, one goal, working hard together; things are hard but we will succeed." The factory policy is: "survive by product quality, develop by expanding product types, win the market through honest service, and manage people well." The goal is first-class products, first-class service, and a first-class company.
Send Inquiry
Description

Who Builds This Shaft



The company's core values are: "people first, scientific management, walking together; the road is long but we will arrive; one heart, one goal, working hard together; things are hard but we will succeed." The factory policy is: "survive by product quality, develop by expanding product types, win the market through honest service, and manage people well." The goal is first-class products, first-class service, and a first-class company.



That approach also applies to the Industrial Drive Shaft. It is a drive component used in automated production lines, industrial robots, and precision drive mechanisms. Materials include 40Cr, 42CrMo, and 20CrMnTi alloy structural steel. The process includes precision forging, quenching and tempering, and high-precision grinding. This Industrial Drive Shaft has good torsional strength and dynamic balance.

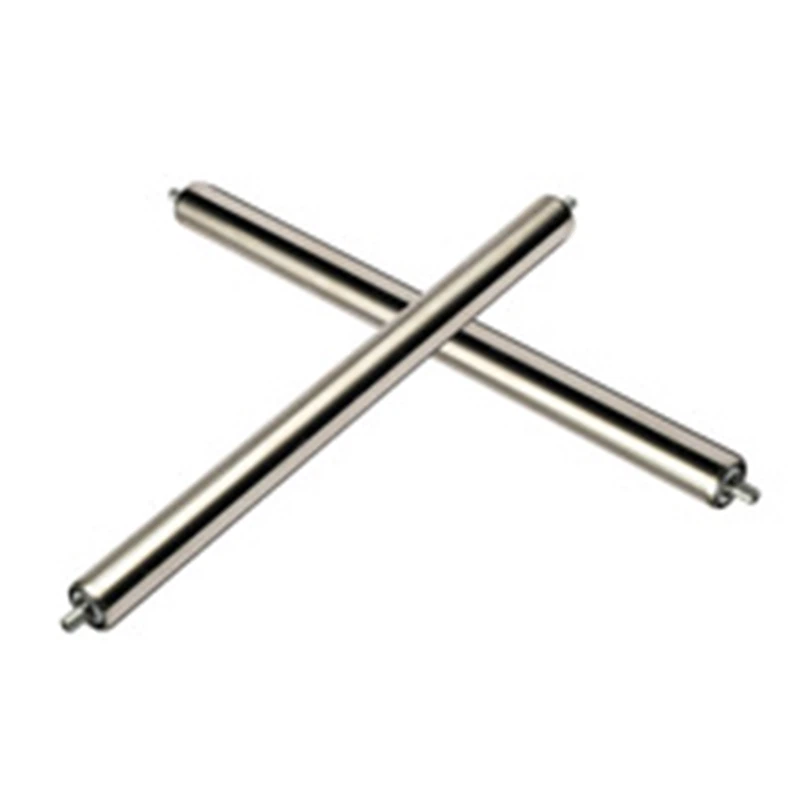

product-800-800



Accuracy That Shows on the Line



Automation equipment can be affected by small dimensional errors. Excessive shaft runout can cause vibration, noise, and positioning errors. Shaft journal runout tolerance is ≤0.01 mm, and straightness is ≤0.02 mm/100 mm. Surface roughness reaches Ra≤0.8 μm. Heat treatment hardness ranges from HRC28 to 55 and can be adjusted by section. Applicable speed is 100 to 6000 r/min, and rated drive torque is 50 to 2000 N·m.



Connection forms include keyway connection, involute spline, and flange connection. Surface treatment options include blackening, phosphating, hard chrome plating, and anti-rust treatment. Applications include servo drives, linear modules, conveying equipment, and robot joint drives. The shaft is also used in industrial robots, servo modules, automated assembly lines, and precision drive devices. High-precision requirements are controlled during machining.

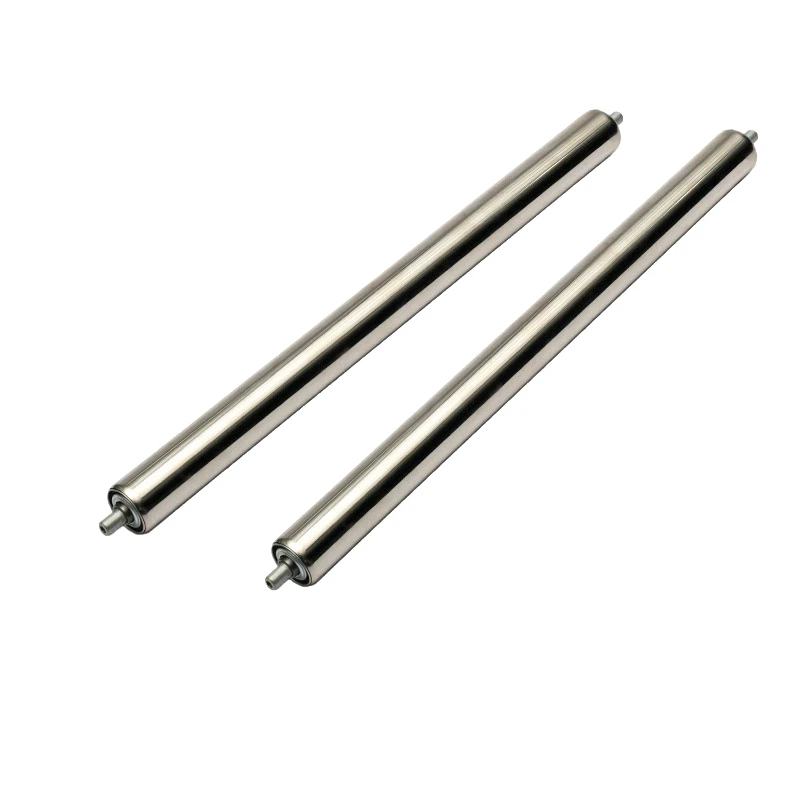

product-800-800



Support and Buyer Questions



Before sales, the company provides technical consultation based on customer requirements. Product specifications, performance, and fit are checked according to the order. Quality control requirements are followed during production, and production progress and inspection results are reported to customers. Customer third-party audits are also supported.



After delivery, follow-up and technical support are available when needed. Buyers ordering the Industrial Drive Shaft usually ask about runout tolerance first, because excessive runout can cause positioning errors and rejected parts on an automated production line.



Key Parameters



Parameter

Value

Material

40Cr, 42CrMo, 20CrMnTi alloy structural steel

Shaft journal runout tolerance

≤0.01 mm

Straightness

≤0.02 mm/100 mm

Surface roughness

Ra≤0.8 μm

Applicable speed

100–6000 r/min

Rated drive torque

50–2000 N·m
