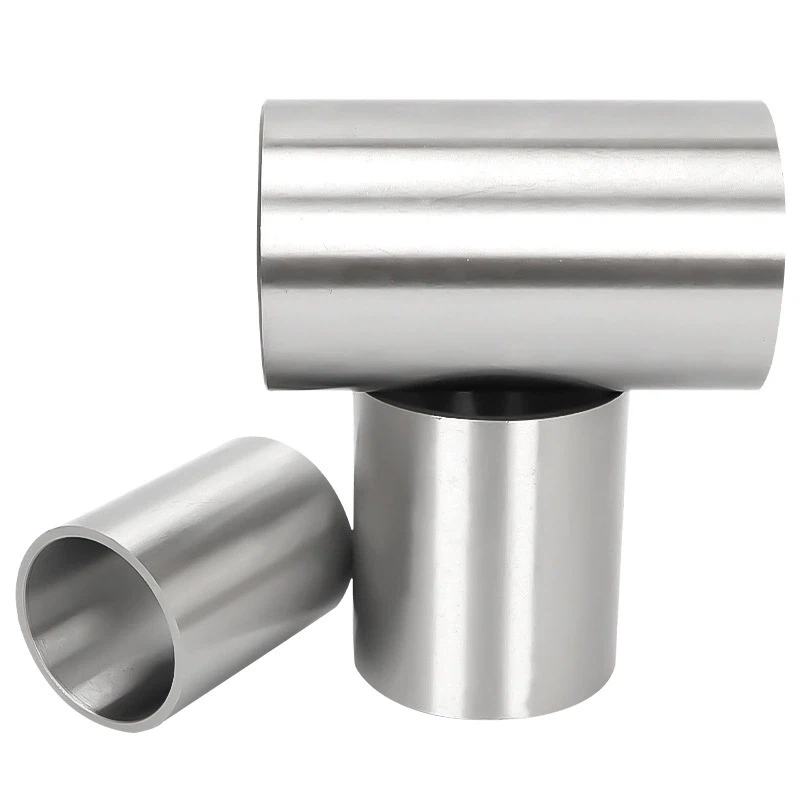

Shaft Sleeve Bushing

Shaft Sleeve Bushing

The company moved to Qiangchang Town Industrial Park in Jingshan, Hubei, in 2023. The new plant covers 60 mu, with more than 27,000 square meters of workshop space. A fully automatic heat treatment line was put into operation at the same time. Before the move, the company's rented and owned workshop space had reached 12,000 square meters by 2022, with a complete production system in operation. The relocation reduced costs and improved production efficiency, management, and product development.
Send Inquiry
Description

Built for Rotation

The company moved to Qiangchang Town Industrial Park in Jingshan, Hubei, in 2023. The new plant covers 60 mu, with more than 27,000 square meters of workshop space. A fully automatic heat treatment line was put into operation at the same time. Before the move, the company's rented and owned workshop space had reached 12,000 square meters by 2022, with a complete production system in operation. The relocation reduced costs and improved production efficiency, management, and product development.



The Shaft Sleeve Bushing is used in industrial robot joints, automated drive modules, servo equipment, and precision rotating mechanisms. It positions bearings, fixes shafts axially, and supports shaft systems. Materials include 45 steel, 40Cr, and GCr15 bearing steel. High-quality alloy steel is precision machined. This Shaft Sleeve Bushing maintains tight dimensional tolerances and good coaxiality.

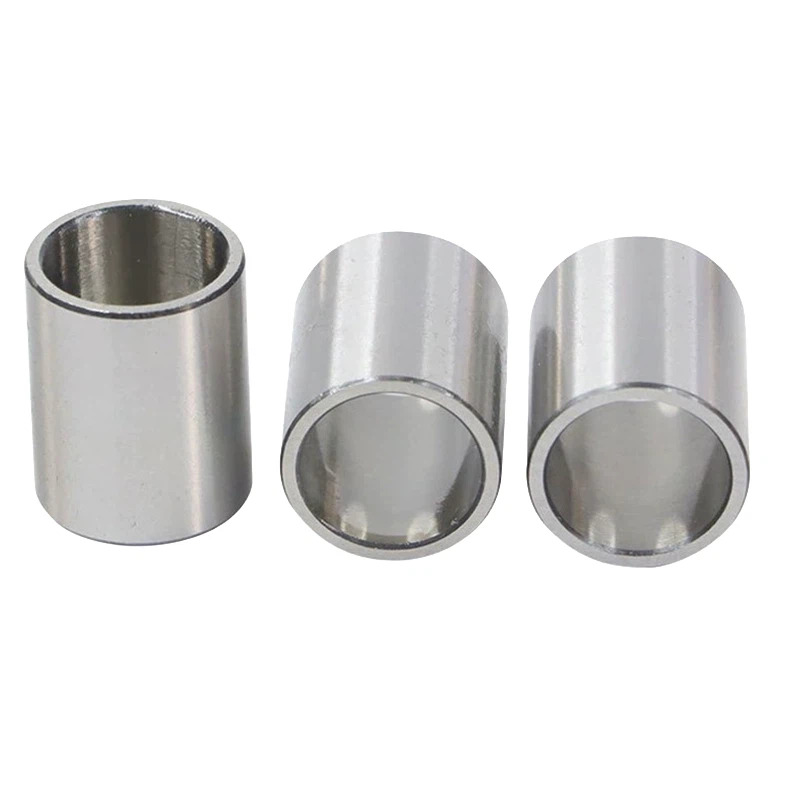

product-800-800



Runout, Speed, and Finish



Bearing positioning affects machine operation. Poor positioning can cause vibration and other running problems. Bearing installation and positioning are controlled during machining. This reduces running runout and helps keep the drive system stable. Inner diameter tolerance reaches IT6 to IT7. Outer diameter tolerance reaches IT7. End face perpendicularity is ≤0.02 mm, and coaxiality is ≤0.015 mm. Surface roughness reaches Ra≤0.8 μm.



Applicable speed is up to 6000 r/min, with a working temperature range of -30°C to 120°C. Surface treatment options include blackening, phosphating, and anti-rust oil. The Shaft Sleeve Bushing has good wear resistance and sufficient rigidity for high-speed, high-precision automation equipment. Custom production is available according to shaft diameter and bearing model. Applications include industrial robot joints, servo motors, precision drive mechanisms, and automated assembly line modules.

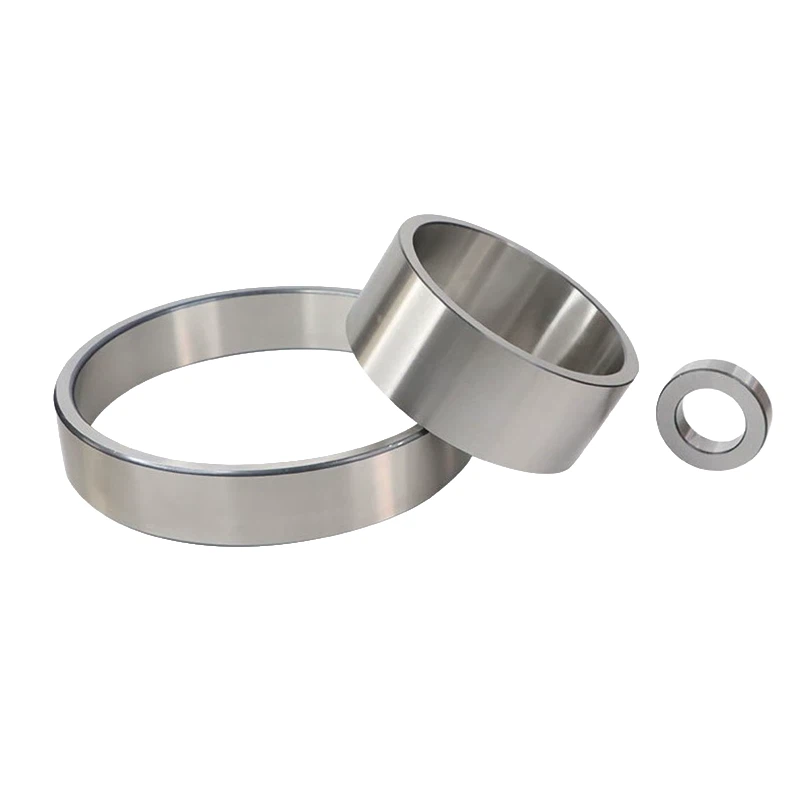

product-800-800



Payment and Buyer Questions



Payment terms are flexible. Regular orders use 30% prepayment, 50% before shipment, and 20% balance. Custom products use 50% prepayment, 30% before shipment, and 20% balance. RMB, USD, and other currencies are accepted. EXW, FOB, and DDP trade terms are supported.



Bulk orders are eligible for discounts. The goods are covered by a warranty. Damaged goods on arrival can be returned free of charge. Buyers ordering the Shaft Sleeve Bushing usually ask about coaxiality first, because a sleeve that is not properly aligned can cause uneven bearing wear and shorten bearing service life.



Key Parameters



Parameter

Value

Material

45 steel, 40Cr, GCr15 bearing steel

Inner diameter tolerance

IT6–IT7

Outer diameter tolerance

IT7

End face perpendicularity

≤0.02 mm

Coaxiality

≤0.015 mm

Surface roughness

Ra≤0.8 μm
