Fixture Base Plate

Fixture Base Plate

Machining started here in 1997. The company began as a family heat treatment workshop in Huzhou, Zhejiang. It was officially registered in January 2011. Sany Heavy Industry began working with the company in 2017 to source crane boom joints. Third-party audits followed, and the company received the "Quality Supplier" honor. By 2022, it had become a main supplier of this type of joint.
Send Inquiry
Description

Where the Company Came From



Machining started here in 1997. The company began as a family heat treatment workshop in Huzhou, Zhejiang. It was officially registered in January 2011. Sany Heavy Industry began working with the company in 2017 to source crane boom joints. Third-party audits followed, and the company received the "Quality Supplier" honor. By 2022, it had become a main supplier of this type of joint.

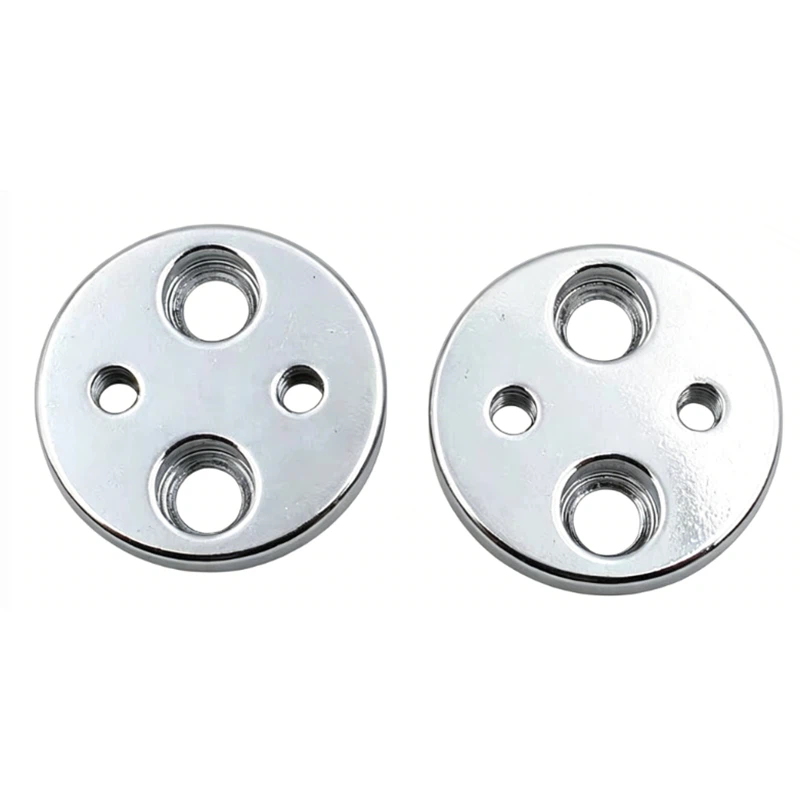

The Fixture Base Plate is used for automated production lines, machine tool machining, testing fixtures, and assembly fixtures. Materials include HT250 cast iron, 45 steel, 6061 aluminum alloy, and Q235B steel plate. High-strength materials are precision machined. The finished Fixture Base Plate maintains rigidity and resists deformation.

product-800-800



Datum, Holes, and Consistency



A fixture base that shifts can affect the position of every workpiece clamped to it. Datum surfaces, mounting holes, and positioning structures are machined to the specified dimensions. This keeps workpiece clamping and positioning consistent during machining and testing.



Flatness is ≤0.015 mm/100 mm. Perpendicularity and parallelism are ≤0.02 mm. Mounting hole position tolerance is ≤0.03 mm. Surface roughness is Ra≤1.6 to 3.2 μm. Thickness ranges from 10 to 50 mm and can be customized.



Surface treatment options include blackening, zinc coating, anodizing, and electrostatic powder coating. Custom production is available according to working conditions, including shape, mounting holes, and positioning structures. Applications include CNC machining fixtures, testing fixture bases, robot clamping bases, and non-standard positioning fixtures.



Machines and Delivery



The factory has more than 200 wire-cutting machine sets, over 40 CNC lathes, CNC machines, and machining centers, and 17 sets of heat treatment equipment. A fully automatic heat treatment production line was put into operation after the factory move.



Custom samples take 10 to 30 days. Standard products are shipped in 10 to 15 days, while custom orders take 20 to 30 days. Repeat orders are handled faster. Buyers ordering the Fixture Base Plate usually ask about flatness first, because an uneven base plate can cause the clamped part to be machined out of tolerance.



Key Parameters



Parameter

Value

Material

HT250 cast iron, 45 steel, 6061 aluminum alloy, Q235B steel plate

Flatness

≤0.015 mm/100 mm

Perpendicularity / Parallelism

≤0.02 mm

Mounting hole position

≤0.03 mm

Thickness

10–50 mm (customizable)

Surface treatment

Blackening, zinc coating, anodizing, electrostatic plastic spraying
