Built for Medical Work
The company moved to Qiangchang Town Industrial Park in Jingshan, Hubei, in 2023. The new plant covers 60 mu, with more than 27,000 square meters of workshop space. A fully automatic heat treatment line was put into operation at the same time. Before the move, the company's rented and owned workshop space had reached 12,000 square meters by 2022, with a complete production system already in operation. The relocation reduced costs and improved production efficiency, management, and product development.

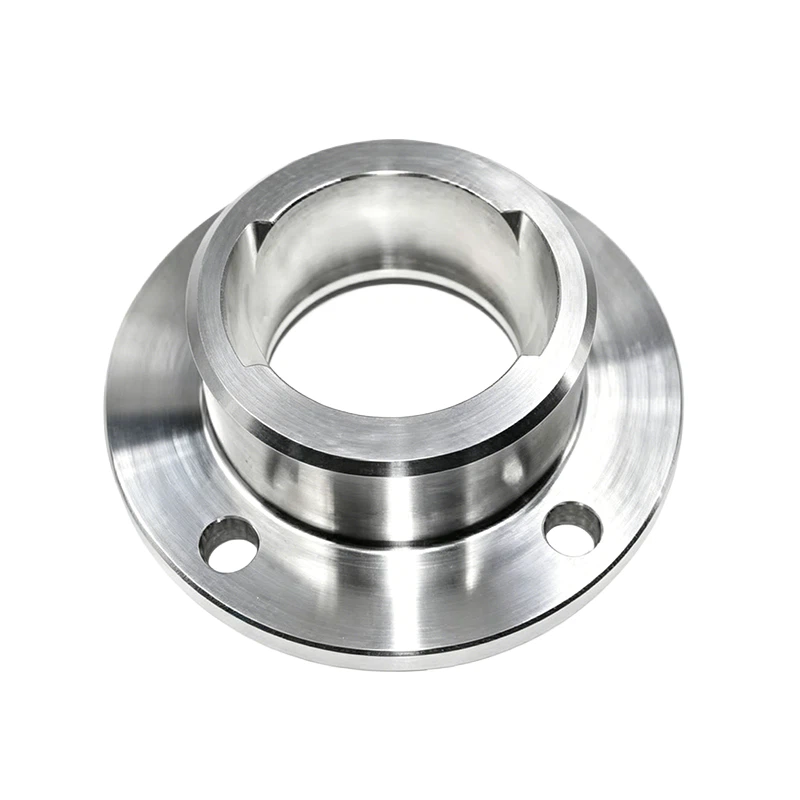

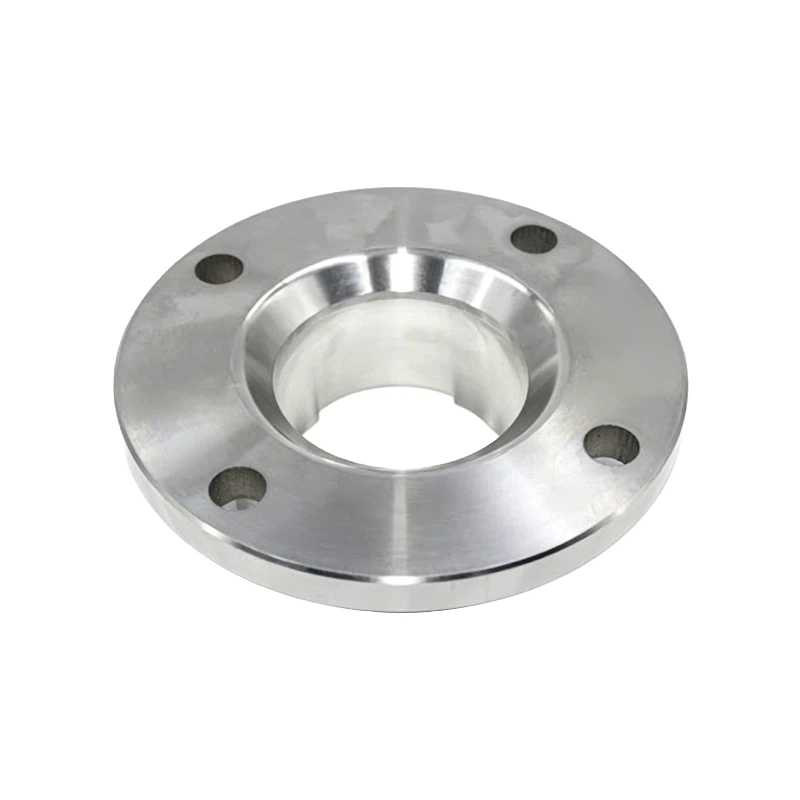

The Precision Mounting Base for Medical Equipment is used for surgical equipment, diagnostic instruments, rehabilitation devices, and minimally invasive medical equipment. Materials include 6061/7075 aluminum alloy, 304/316L medical stainless steel, and hard alloy. High-rigidity, corrosion-resistant, non-magnetic materials are precision machined. The finished Precision Mounting Base for Medical Equipment is made to maintain dimensional stability and resist deformation.

Flatness, Holes, and Cleanliness
Medical equipment requires tight tolerances and clean surfaces. Mounting reference accuracy, instrument coaxiality, and positioning accuracy are controlled during machining. The base is also processed according to the cleanliness and stability requirements of the equipment.
Flatness is ≤0.01 mm/100 mm. Hole position tolerance is ≤0.02 mm. Parallelism and perpendicularity are ≤0.02 mm. Surface roughness is Ra≤0.4 to 1.6 μm. Load capacity ranges from 5 to 500 kg. Working temperature ranges from -20°C to 60°C.
Surface treatment options include electrolytic polishing, anodizing, passivation, and medical-grade powder coating. Custom production is available according to equipment structure. Applications include surgical robot bases, testing equipment bases, medical imaging equipment supports, and minimally invasive instrument mounting platforms.

Delivery
Before sales, the company provides technical consultation based on customer requirements. Product specifications, performance, and fit are checked according to the order. Quality control standards are followed during production, and production progress and inspection results are reported to customers. Customer third-party audits are also supported.
After delivery, follow-up and technical support are available. Buyers ordering the Precision Mounting Base for Medical Equipment usually ask about flatness first, because an uneven mounting surface can affect instrument alignment and calibration.
Key Parameters
|
Parameter |
Value |
|
Material |
6061/7075 aluminum alloy, 304/316L medical stainless steel, hard alloy |
|
Flatness |
≤0.01 mm/100 mm |
|
Hole position tolerance |
≤0.02 mm |
|
Surface roughness |
Ra≤0.4–1.6 μm |
|
Load capacity |
5–500 kg |
|
Working temperature |
-20°C to 60°C |
