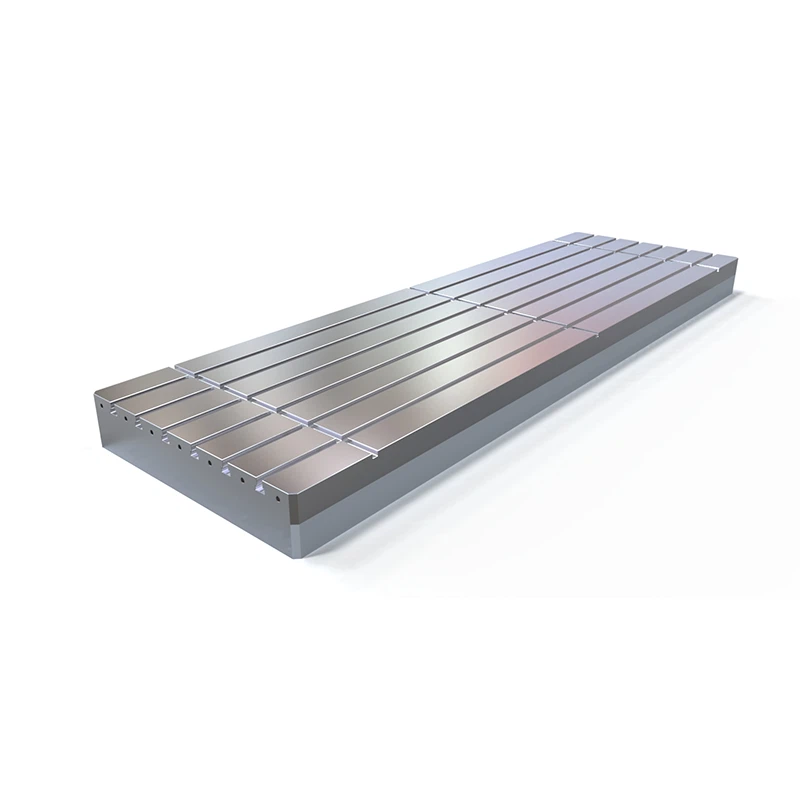

The Machine Table Support Plate is used on CNC machining centers, CNC lathes, grinders, and precision fixture platforms. It is used for height adjustment, leveling, and vibration damping. Materials include HT250 gray cast iron, 45 steel, Q235B steel, and 6061 aluminum alloy. High-rigidity materials are precision machined. The finished Machine Table Support Plate maintains flatness and compression resistance.

product-800-800



Flatness, Load, and Stability



A support plate that compresses or tilts can change the height of the equipment or fixture above it. The plate is machined to control flatness and parallelism. This keeps the worktable and fixtures in a stable position during use.



Flatness is ≤0.015 mm/100 mm. Parallelism and perpendicularity are ≤0.02 mm. Thickness ranges from 10 to 50 mm and can be customized. Surface roughness is Ra≤1.6 to 3.2 μm. Compression load ranges from 10 to 50 kN. Working temperature is -20°C to 80°C.



Surface treatment options include blackening, anti-rust paint, sandblasting, and anodizing. Custom sizes are available for thickness, shape, and positioning holes. Applications include CNC machine tool worktables, precision fixture platforms, testing equipment bases, and machine leveling blocks.



Testing and Buyer Questions



The factory has six sets of testing equipment, including a metallographic microscope, spectrometer, and ultrasonic flaw detector. These are used to check material composition and internal defects. 100% inspection before packing is available when required. Third-party inspection is also welcome. The company provides a warranty, and custom drawings can be accepted for production.



Buyers ordering the Machine Table Support Plate usually ask about parallelism first, because a plate that is not parallel can tilt the worktable and affect machining accuracy.



Key Parameters



Parameter

Value

Material

HT250 gray cast iron, 45 steel, Q235B, 6061 aluminum alloy

Flatness

≤0.015 mm/100 mm

Parallelism / Perpendicularity

≤0.02 mm

Thickness

10–50 mm (non-standard customizable)

Compression load

10–50 kN

Working temperature

-20°C to 80°C
