Agricultural Drive Shaft

Agricultural Drive Shaft

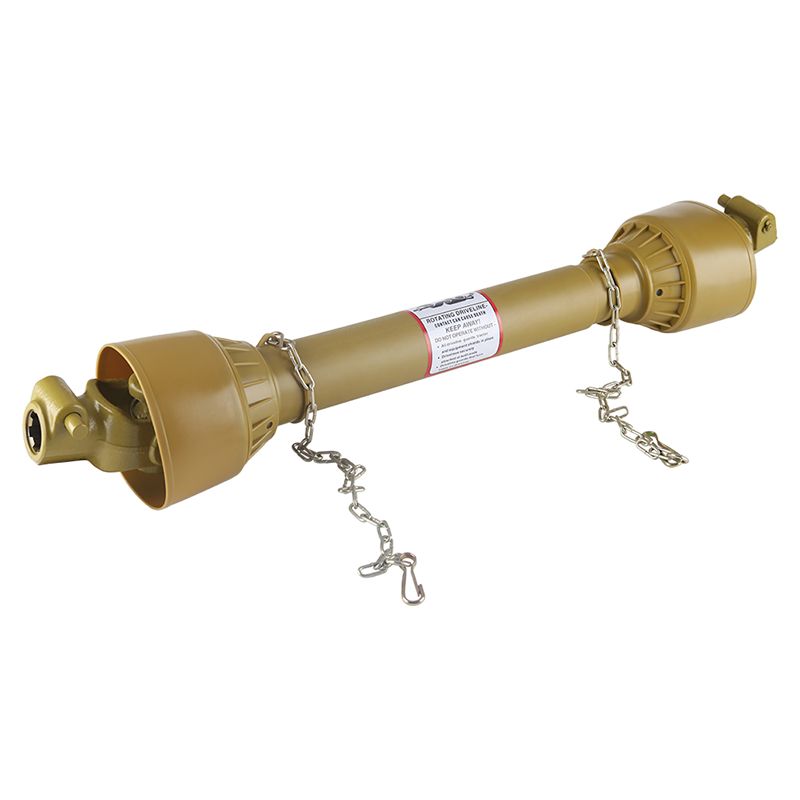

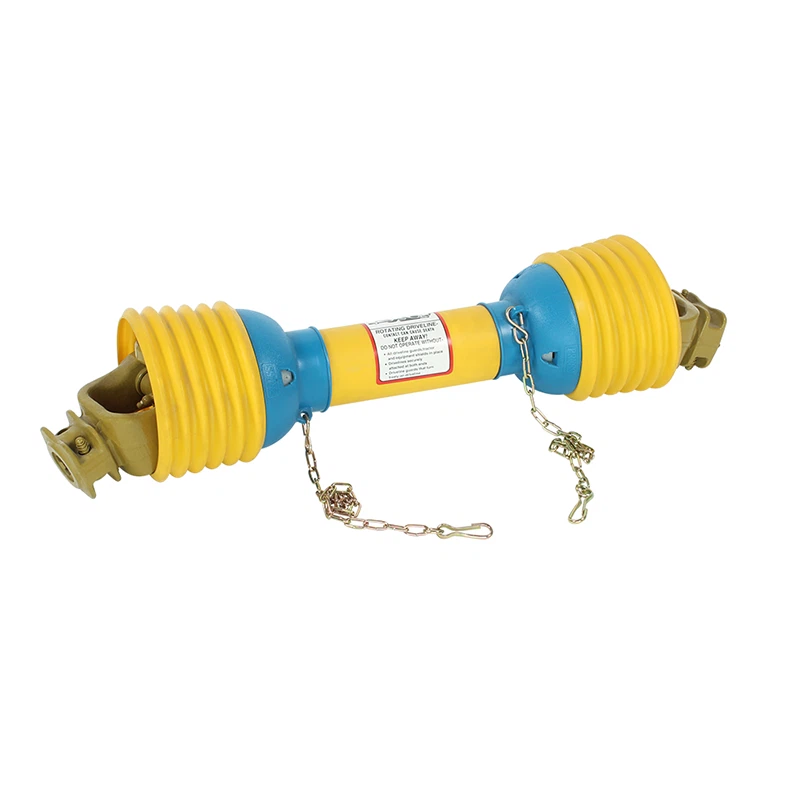

Farm machines operate in dust, mud, and uneven ground, but the drive shaft still needs to maintain stable rotation. The Agricultural Drive Shaft from Hubei Kangding Machinery Equipment Co., Ltd. is made for these working conditions. It uses 40Cr or 45# alloy steel and undergoes quenching, tempering, and precision dynamic balancing. These processes help maintain steady torque transfer and smooth operation while improving resistance to fatigue and impact. It is suitable for tractors, rotary tillers, harvesters, straw returning machines, seeders, and other agricultural equipment.
Send Inquiry
Description

Proven Performance – Backed by Data



Farm machines operate in dust, mud, and uneven ground, but the drive shaft still needs to maintain stable rotation. The Agricultural Drive Shaft from Hubei Kangding Machinery Equipment Co., Ltd. is made for these working conditions. It uses 40Cr or 45# alloy steel and undergoes quenching, tempering, and precision dynamic balancing. These processes help maintain steady torque transfer and smooth operation while improving resistance to fatigue and impact. It is suitable for tractors, rotary tillers, harvesters, straw returning machines, seeders, and other agricultural equipment.



The company behind the Agricultural Drive Shaft started in 1997 as a family-run heat treatment workshop in Huzhou, Zhejiang, and was officially registered in January 2011. Starting in 2017, it supplied crane boom joints to Sany Heavy Industry and passed multiple third-party audits. By 2022, it had become a main supplier for this type of joint. This manufacturing background supports the production of the shaft.

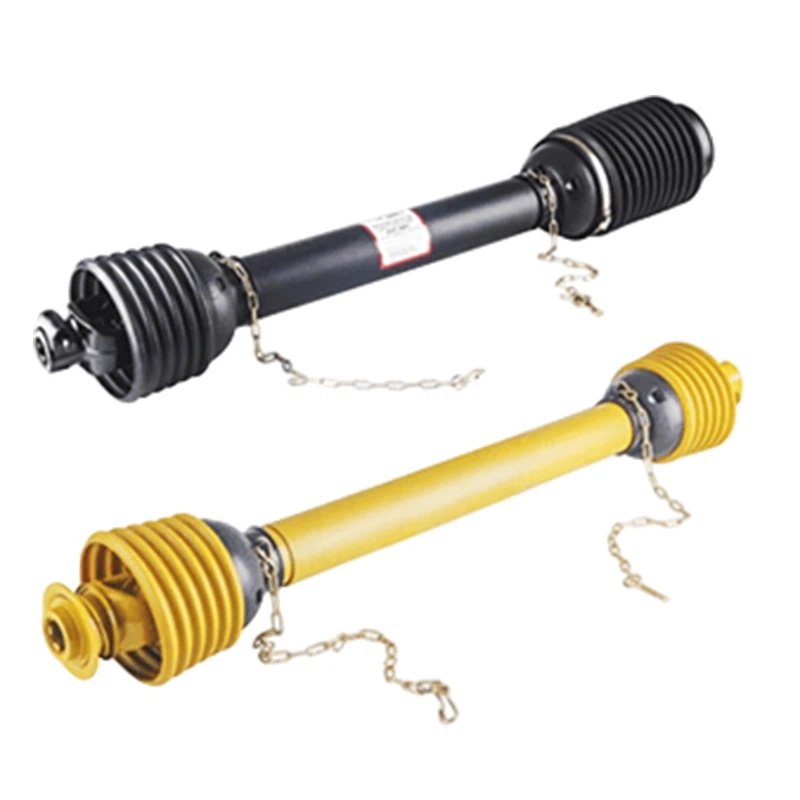

product-800-800



Length, Angle, and Connection



The shaft has a telescopic design, with a length range of 400–1200 mm. Custom sizes are available. The universal joint rotates freely, with a maximum deflection angle of ≤45°. Spline options include national-standard involute splines and rectangular splines, matched to the machine model. The speed range is 500–3000 r/min.



Surface treatment options include black oxide, anti-rust oil, and zinc plating. A fully enclosed dust-proof boot protects the universal joint. Connection options include flange, fork, and quick-install types. The Agricultural Drive Shaft is suitable for complex, dusty, heavy-load field conditions. It helps maintain stable power output while reducing overall machine vibration and noise.



Before sales, the company provides technical consultation on specifications, performance, and compatibility. During production and delivery, it follows quality control requirements and provides production progress and inspection results. Third-party audits are also supported. After sales, the company provides technical support through its follow-up service system and responds to customer questions in a timely manner.

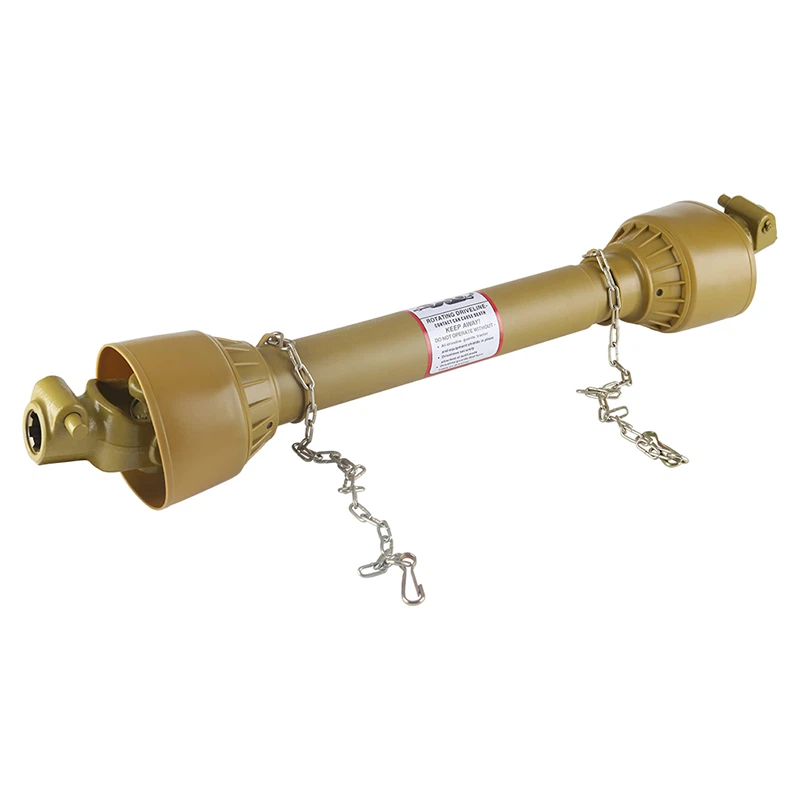

product-800-800



Key Parameters



Parameter

Value

Material

40Cr / 45# alloy steel

Nominal torque

200–2000 N·m

Telescopic length range

400–1200 mm (customizable)

Universal joint deflection angle

Max. ≤45°

Speed range

500–3000 r/min

Connection type

Flange connection / fork connection / quick-install connection
