Agricultural Machinery Shift Fork Groove

Agricultural Machinery Shift Fork Groove

The company holds ISO-9001 quality management system certification and ISO-14000 environmental management system certification. Production and operations are carried out in accordance with these standards to maintain product quality and a compliant production environment. Its products and services have also earned honors such as “Quality Supplier” from Sany Heavy Industry on multiple occasions.
Send Inquiry
Description

Certified and Proven



The company holds ISO-9001 quality management system certification and ISO-14000 environmental management system certification. Production and operations are carried out in accordance with these standards to maintain product quality and a compliant production environment. Its products and services have also earned honors such as "Quality Supplier" from Sany Heavy Industry on multiple occasions.

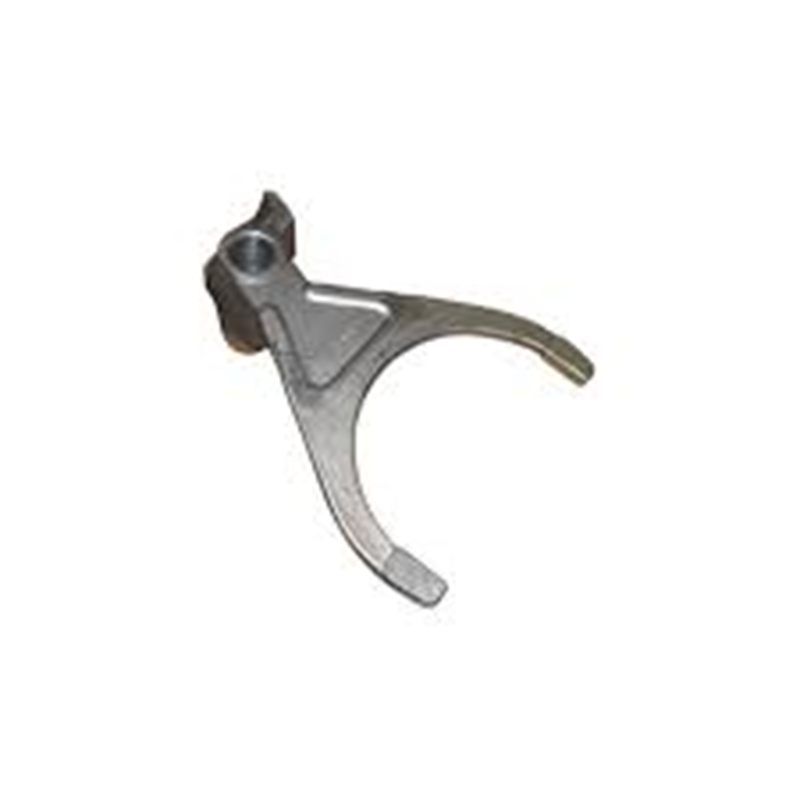

The Agricultural Machinery Shift Fork Groove is used inside farm gearboxes and shifting mechanisms. It is made from 45 steel or 40Cr alloy steel, with precision machining used to form the groove. Heat treatment brings the hardness to HRC40–48. The groove surface is smooth, with consistent hardness throughout. The groove is matched with the shift fork at a suitable clearance to support smooth gear shifting.

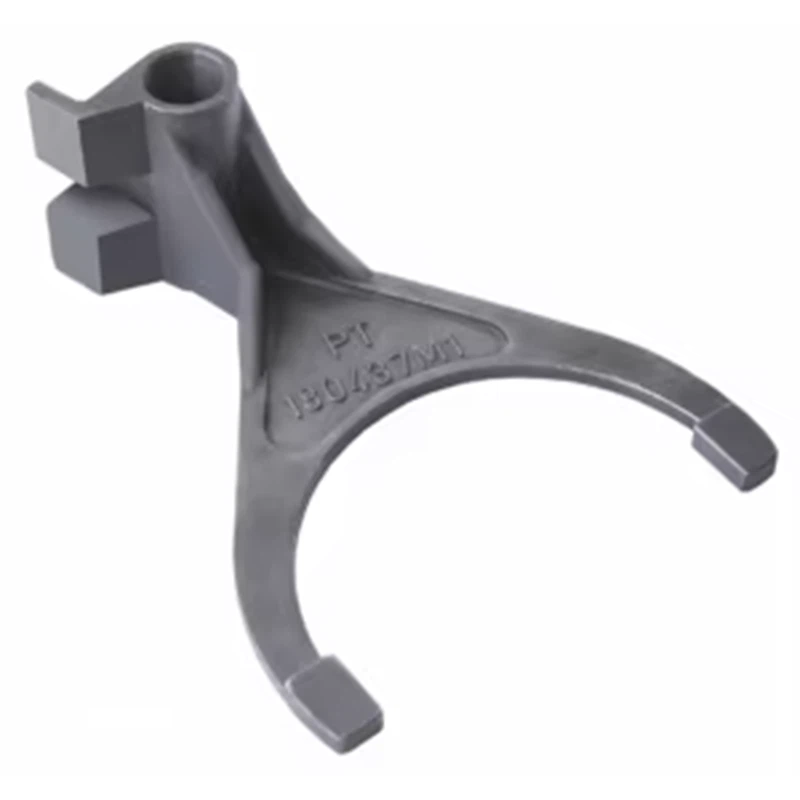

product-800-800



Shifting Without Jamming



A poorly made shift fork groove can cause the shift lever to catch or the gears to grind. This design allows smooth shifting without jamming. It also provides good wear and impact resistance for frequent shifting and heavy-load operation on uneven farmland. The groove width tolerance is ±0.02 mm, the groove surface roughness is Ra≤1.6 μm, and groove body straightness is ≤0.03 mm/100 mm.



Shift fork thicknesses from 8 mm to 20 mm are supported, with customization available when required. Installation can use embedded positioning or bolt fastening. The applicable speed is up to 3000 r/min, with a working temperature range of -35°C to 120°C. This Agricultural Machinery Shift Fork Groove is suitable for farm gearboxes used with engines from 30 to 220 hp.

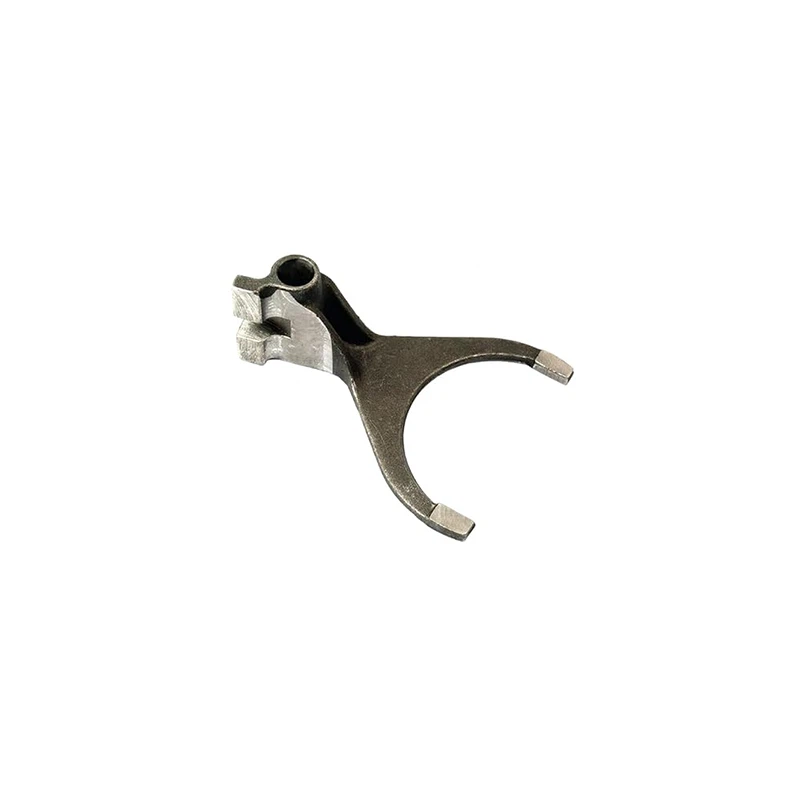

product-800-800



Payment and Warranty



Payment terms are flexible. The regular payment schedule is 30% prepayment, 50% before shipment, and 20% balance. For custom products, the payment schedule is 50% prepayment, 30% before shipment, and 20% balance. RMB, USD, and other currencies are accepted. EXW, FOB, and DDP trade terms are available.



Bulk orders can receive discounts. A warranty is provided for the goods, and products damaged upon arrival can be returned free of charge. Buyers ordering the Agricultural Machinery Shift Fork Groove in volume often pay close attention to hardness consistency, as uneven hardness can lead to premature wear during field operation.



Key Parameters



Parameter

Value

Material

45 steel / 40Cr alloy steel

Heat treatment hardness

HRC40–48

Groove width tolerance

±0.02 mm

Groove surface roughness

Ra≤1.6 μm

Groove body straightness

≤0.03 mm/100 mm

Compatible shift fork thickness

8–20 mm (customizable)
