Hydraulic Pump Body
video
Hydraulic Pump Body

Hydraulic Pump Body

The Hydraulic Pump Body from Hubei Kangding Machinery Equipment Co., Ltd. is made for high-pressure and heavy-load applications. The company started in 1997 as a small heat treatment workshop in Huzhou, Zhejiang, and was officially registered in 2011. In 2017, it began supplying crane boom joints to Sany Heavy Industry. By 2022, it had become a main supplier of this type of joint. This experience has given the company solid process knowledge in heavy-duty hydraulic parts.
Send Inquiry
Description

Built For High-Pressure Work



The Hydraulic Pump Body from Hubei Kangding Machinery Equipment Co., Ltd. is made for high-pressure and heavy-load applications. The company started in 1997 as a small heat treatment workshop in Huzhou, Zhejiang, and was officially registered in 2011. In 2017, it began supplying crane boom joints to Sany Heavy Industry. By 2022, it had become a main supplier of this type of joint. This experience has given the company solid process knowledge in heavy-duty hydraulic parts.

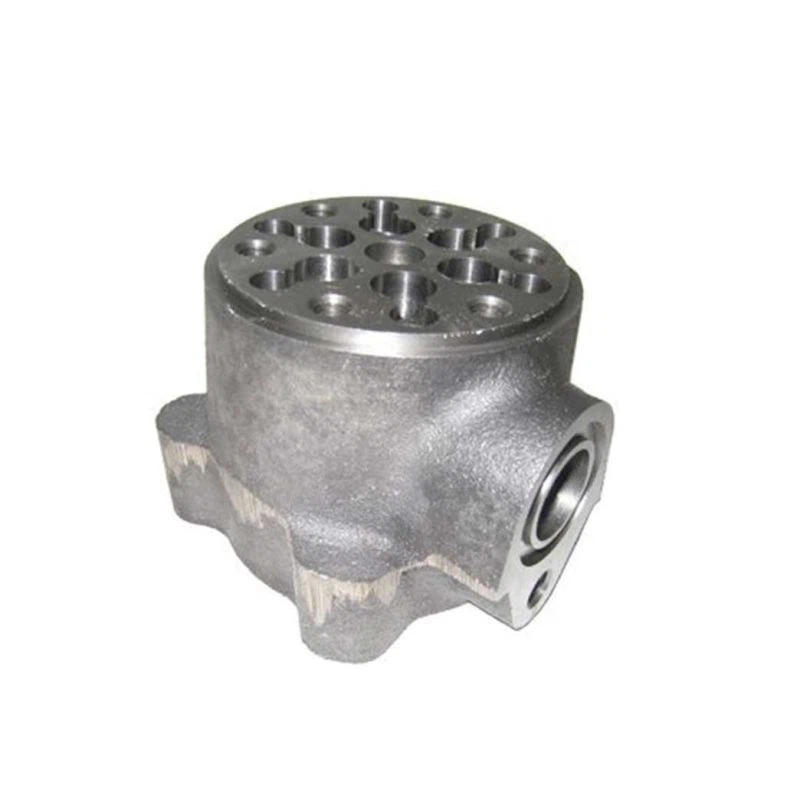

This Hydraulic Pump Body is made from QT500-7 ductile iron and cast as a single piece, followed by precision CNC machining and aging treatment. The rigid structure provides good resistance to impact and wear. It is suitable for excavators, loaders, cranes, road rollers, and other major construction equipment. It can run for extended periods in mining, infrastructure, and earthmoving applications. The design provides reliable sealing and stable flow with fast pressure response. It supports through-shaft series and multi-pump parallel layouts, as well as load sensing, pressure cut-off, and constant power control modes.

54d1f56e-4e5c-432a-ac1f-116a2881f58c



Strong Support for Tough Jobs



For demanding working conditions, the Hydraulic Pump Body is rated for speeds of 2,000–2,200 r/min, with a maximum speed of 2,400 r/min. It uses L-HM46 or L-HM68 anti-wear hydraulic oil and operates at oil temperatures from -20°C to +80°C. The mounting type is flange direct connection, and the seal grade is IP67. Surface treatment includes polishing, rust removal, and anti-rust coating.



The factory has six sets of testing equipment, including a metallographic microscope, spectrometer, and ultrasonic flaw detector. These are used to check material composition and identify internal defects. When required, 100% inspection can be completed before packing, and third-party inspection is also accepted. The company provides a warranty, and customers can return goods free of charge if they arrive damaged. Custom production based on customer drawings is also available.

17763304702726



Key Parameters You Can Trust



Parameter

Value

Material

QT500-7 ductile iron

Rated pressure / peak pressure

35 MPa / 42 MPa

Displacement range

45–280 mL/r

Pump types

Swashplate / bent-axis axial piston pumps, gear pumps

Max speed

2,400 r/min

Working oil temperature

-20°C to +80°C

Seal grade

IP67



Hot Tags: hydraulic pump body, China hydraulic pump body manufacturers, suppliers, factory, construction screw components, custom alloy construction parts, custom bolt construction parts, custom motor construction parts, custom shaft construction parts, custom small batch construction parts
