Who Works Behind This Product
One senior engineer leads the technical side of the operation. Six core managers hold college degrees or higher. Seven R&D technicians handle product design and development. Two salespeople cover the market, while more than 50 skilled operators run the production equipment. Together, the team handles product development, production technology, quality control, and marketing.

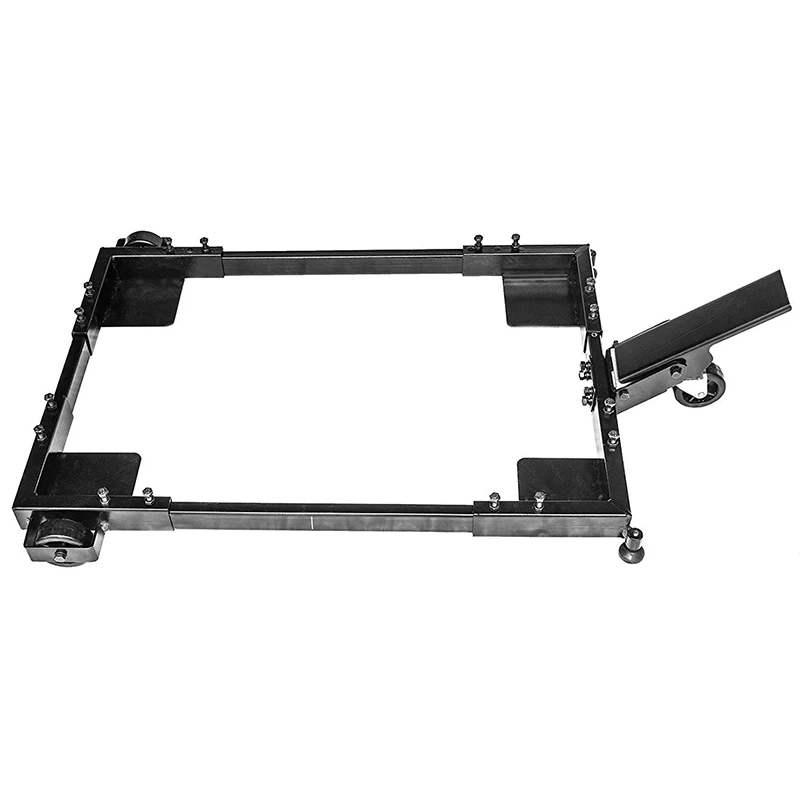

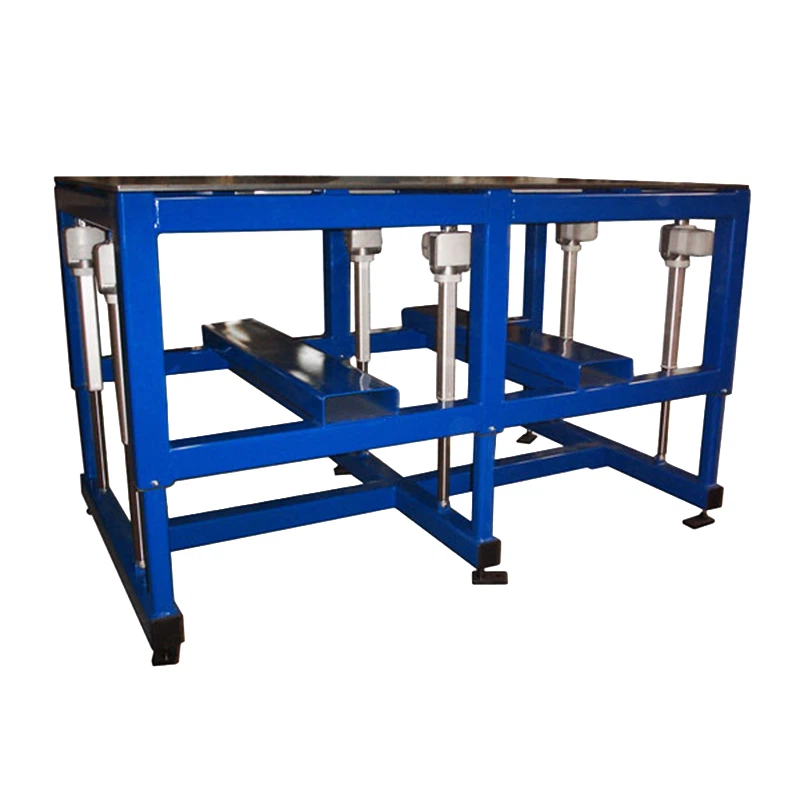

The Heavy Duty Machine Base serves as a support base for heavy equipment. Q355B low-alloy high-strength steel or Q235B carbon steel is used for production. Thick-walled profiles and high-strength steel plates are welded together, followed by stress-relief annealing and precision leveling. The finished structure has high rigidity and resists torsion, impact, and deformation under load. It is built to handle heavy loads, impact, and high-frequency vibration. Special construction machinery, mining equipment, large hydraulic units, and special work platforms use this type of base.

Welds, Load, and Finish
Welding quality plays a major role in the service life of a machine base. The structure is made as an overall welded frame or box-type closed structure. The rated load ranges from 10 t to 80 t and can be further strengthened. Base flatness is maintained at ≤0.1 mm/m, while mounting hole position tolerance reaches ≤0.08 mm.
Welding follows full-penetration requirements, with non-destructive testing used for verification. Surface treatment consists of sandblasting, epoxy zinc-rich primer, and a topcoat. Fixing is done with anchor bolts or adjustable shock-absorbing supports. The base can be used in general indoor and outdoor environments. Anti-corrosion, rust-resistant, and weather-resistant versions are available. Applications include special construction machinery, hydraulic stations, large equipment, and special work equipment.

Machines and Lead Times
The factory has more than 200 wire-cutting machine sets, along with over 40 CNC lathes, CNC machines, and machining centers. Seventeen sets of heat treatment equipment are used for hardening work. After the move, a fully automatic heat treatment production line was put into operation.
Custom samples take 10 to 30 days. Standard products ship within 10 to 15 days, while custom orders require 20 to 30 days. Repeat orders can be completed faster. Buyers ordering the Heavy Duty Machine Base for mining or large hydraulic units usually ask about weld testing first, because cracks in a load-bearing base can affect the entire machine.
Key Parameters
|
Parameter |
Value |
|
Material |
Q355B low-alloy high-strength steel / Q235B carbon steel |
|
Structure form |
Overall welded frame / box-type closed structure |
|
Rated load |
10 t–80 t (can be strengthened and upgraded) |
|
Base flatness |
≤0.1 mm/m |
|
Welding standard |
Full-penetration welding, non-destructive testing passed |
|
Fixing method |
Anchor bolt fixing / adjustable shock-absorbing support |
