Automotive Cylinder Sleeves

Automotive Cylinder Sleeves

The company holds ISO-9001 quality management system certification and ISO-14000 environmental management system certification. Production and daily operations follow these standards. The company has also received the "Quality Supplier" honor and other awards from Sany Heavy Industry more than once.
Send Inquiry
Description

Certified and Proven



The company holds ISO-9001 quality management system certification and ISO-14000 environmental management system certification. Production and daily operations follow these standards. The company has also received the "Quality Supplier" honor and other awards from Sany Heavy Industry more than once.

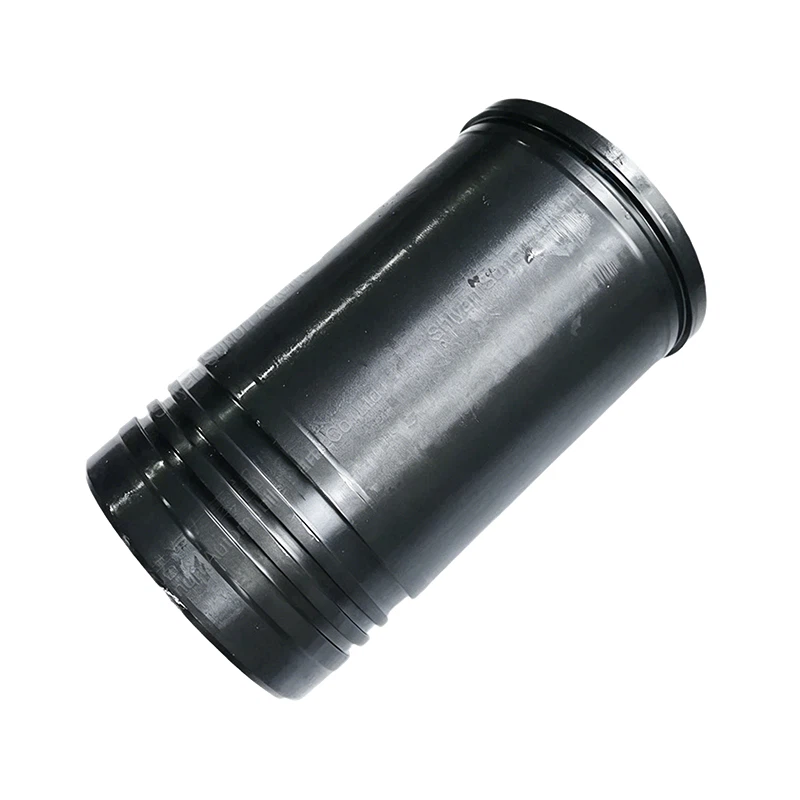

Automotive Cylinder Sleeves are used in pneumatic cylinders, hydraulic cylinders, compressors, and various reciprocating power cylinder bodies. Materials include 20# steel, 45 steel, 40Cr, ductile iron, and alloy cast iron. High-wear and high-rigidity alloy materials are precision ground. The finished Automotive Cylinder Sleeves have smooth inner walls and stable dimensions.

product-800-800



Bore, Roundness, and Pressure

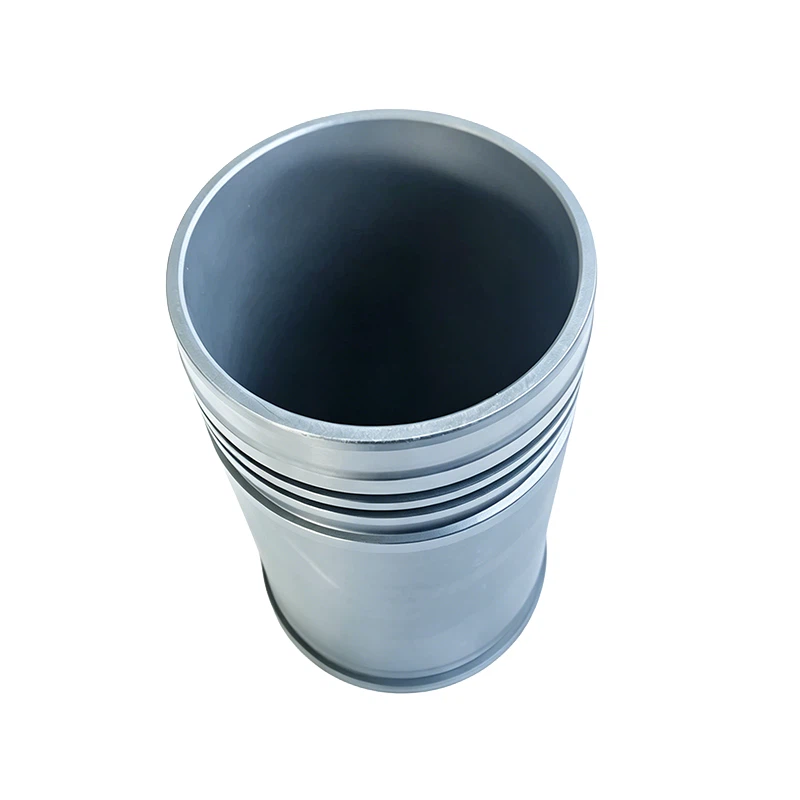

Inside a cylinder, friction and sealing have a direct effect on service life. The material and inner bore are processed for wear resistance, corrosion resistance, and resistance to offset loads. This helps reduce piston friction loss and maintain cylinder sealing during reciprocating movement.



Inner diameter tolerance reaches IT5 to IT7. Roundness and cylindricity are controlled to ≤0.005 mm. Inner wall surface roughness is Ra≤0.4 to 0.8 μm. Working pressure ranges from 0.2 to 32 MPa. Working temperature ranges from -40°C to 220°C. Wall thickness is 2 to 15 mm. Surface treatment options include inner bore hardening, phosphating, hard chrome plating, and anti-rust treatment.



Custom production is available according to inner diameter, wall thickness, and mounting structure. Applications include pneumatic cylinders, hydraulic cylinders, air compressors, engine cylinder bodies, and non-standard reciprocating mechanisms.

product-800-800



Machines and Delivery



The factory has more than 200 wire-cutting machine sets, over 40 CNC lathes, CNC machines, and machining centers, and 17 sets of heat treatment equipment. A fully automatic heat treatment production line was put into operation after the factory move.



Custom samples take 10 to 30 days. Standard products are shipped in 10 to 15 days, while custom orders take 20 to 30 days. Repeat orders are handled faster. Buyers ordering Automotive Cylinder Sleeves usually ask about inner diameter tolerance first, because an out-of-tolerance sleeve can cause blow-by and pressure loss.



Key Parameters



Parameter

Value

Material

20# steel, 45 steel, 40Cr, ductile iron, alloy cast iron

Inner diameter tolerance

IT5–IT7

Roundness / Cylindricity

≤0.005 mm

Inner wall surface roughness

Ra≤0.4–0.8 μm

Working pressure

0.2–32 MPa

Working temperature

-40°C to 220°C
