High Speed Electric Spindle

High Speed Electric Spindle

The company moved to Qiangchang Town Industrial Park in Jingshan, Hubei, in 2023. The new plant covers 60 mu, with more than 27,000 square meters of workshop space. A fully automatic heat treatment line was put into operation at the same time. By 2022, the company's rented and owned workshop space had already reached 12,000 square meters, with a complete production system in operation. The relocation reduced costs and improved production efficiency, management, and product development.
Send Inquiry
Description

Built for Speed

The company moved to Qiangchang Town Industrial Park in Jingshan, Hubei, in 2023. The new plant covers 60 mu, with more than 27,000 square meters of workshop space. A fully automatic heat treatment line was put into operation at the same time. By 2022, the company's rented and owned workshop space had already reached 12,000 square meters, with a complete production system in operation. The relocation reduced costs and improved production efficiency, management, and product development.

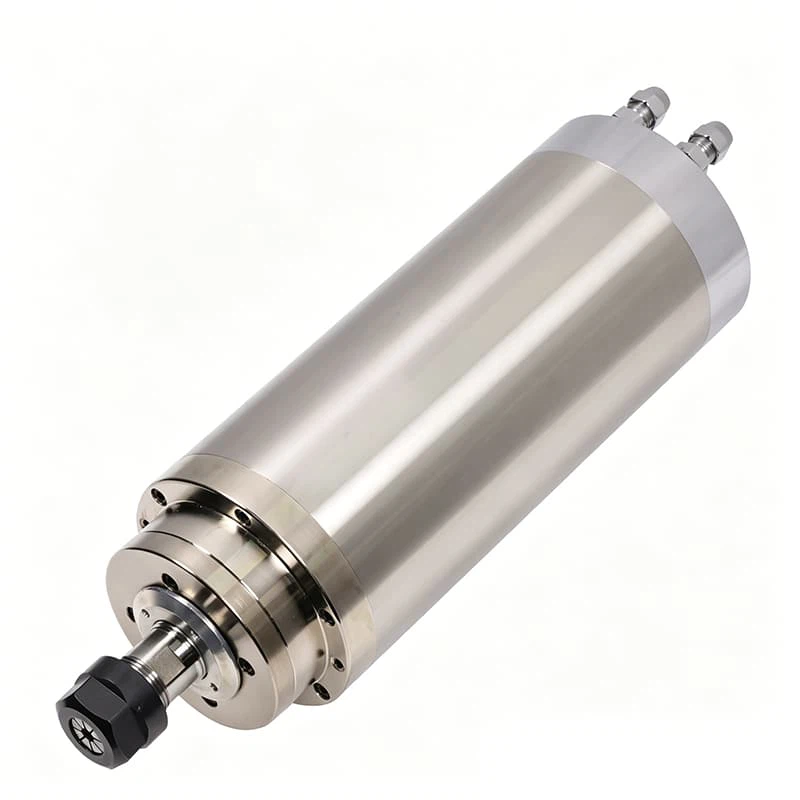

The High Speed Electric Spindle is used with servo motors, high-speed variable frequency motors, CNC machine tool spindle motors, and special power motors. Materials include 40Cr, 42CrMo, 20CrMnTi, and GCr15 bearing steel. High-quality alloy structural steel is forged, quenched and tempered, and precision ground. The finished High Speed Electric Spindle has good rigidity and fatigue resistance.

product-800-800



Runout, Speed, and Balance

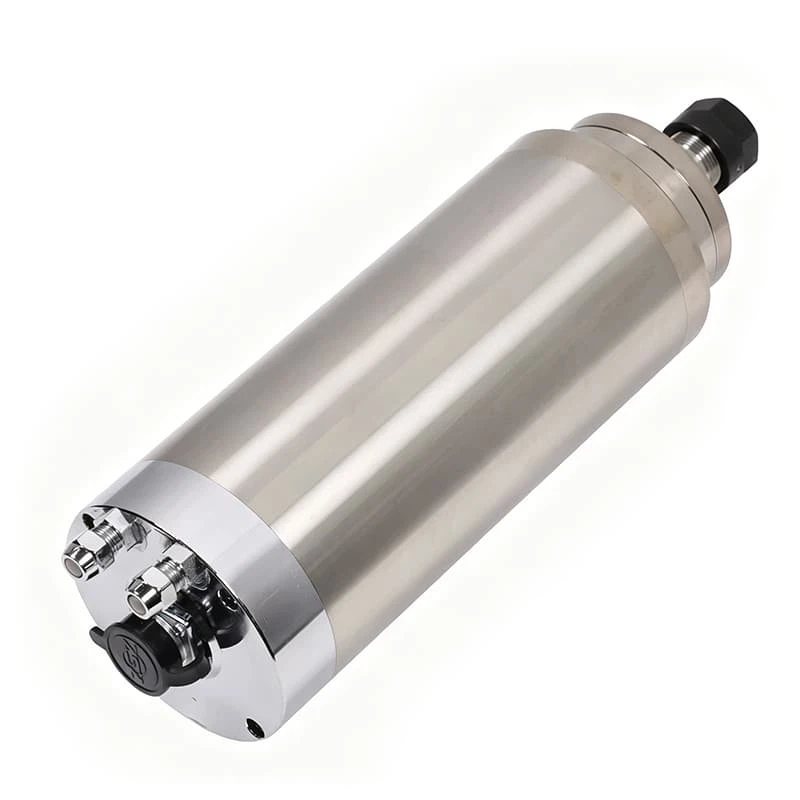

At high speed, small machining errors can cause noticeable vibration and affect the workpiece surface. Radial runout and coaxiality are controlled during machining to keep the spindle running smoothly. Heat treatment hardness is HRC28 to 60, with treatment divided by section.



Radial runout is ≤0.005 mm. Coaxiality is ≤0.01 mm. Surface roughness is Ra≤0.4 to 0.8 μm. Applicable speed ranges from 500 to 12000 r/min. The working temperature range is -40°C to 150°C. Surface treatment options include hard chrome plating, blackening, phosphating, and polishing.



Custom production is available according to motor power and mounting type. The spindle has good wear resistance and coaxiality. It can be used for long-term continuous operation under heavy loads. Applications include servo motors, spindle motors, gear motors, and non-standard power equipment.

product-800-800



Payment and Buyer Questions



Payment terms are flexible. Regular orders use 30% prepayment, 50% before shipment, and 20% balance. Custom products use 50% prepayment, 30% before shipment, and 20% balance. RMB, USD, and other currencies are accepted. EXW, FOB, and DDP trade terms are supported.



Bulk orders are eligible for discounts. The goods are covered by a warranty. Damaged goods on arrival can be returned free of charge. Buyers ordering the High Speed Electric Spindle usually ask about radial runout first, because excessive runout at 12000 r/min can appear as chatter marks on the workpiece.



Key Parameters



Parameter

Value

Material

40Cr, 42CrMo, 20CrMnTi, GCr15 bearing steel

Heat treatment hardness

HRC28–60 (sectioned treatment)

Radial runout

≤0.005 mm

Coaxiality

≤0.01 mm

Applicable speed

500–12000 r/min

Working temperature

-40°C to 150°C
